Marine Resin Flooring: Heat of Cure and Yard Conditions in the Gulf
Published by Yacht IQ, Dubai Maritime City — part of the Silver Yachts group of companies.
A resin flooring data sheet in front of us states its application limits plainly: “Ambient temperature range: +5°C - +30°C”, “Substrate temperature range: +5°C - +30°C”, and “The recommended substrate temperature is 15 - 25°C, but not less than 5°C and more than 30°C.”
Thirty degrees. A Dubai yard in September is comfortably above that before lunch.
That single number governs more of a Gulf flooring project than the product choice does — and it interacts with something most specifications never mention, which is that resin generates its own heat as it cures. This article is about the conditions, not the colour swatch.
Resin cures by making heat, and heat makes it cure faster
The chemistry is a positive feedback loop, and manufacturers describe it plainly: “Exothermic heat is produced by the chemical reaction that cures epoxy,” and “in a thicker mass, more heat is retained, causing a faster reaction and more heat” (West System).
The consequence is not subtle: “Several inches of mixed epoxy in a confined mass (such as a mixing cup) will generate enough heat to melt a plastic cup, burn your skin or ignite combustible materials if left to stand for its full pot life.” Their published limit is a hard one — “Do not fill voids or cast layers of epoxy thicker than ½”—thinner if enclosed by foam or other insulating material.”
Half an inch — 12.7 mm — is the only published maximum cast thickness we could find, and it comes with a warning that insulating substrates make it thinner. On a yacht that matters: a resin poured over foam-cored or insulated flooring is more thermally confined than the same pour on a concrete slab.
Ambient temperature stacks on top of this by shortening pot life. Rather than quote the familiar “pot life halves per 10 °C” rule of thumb — which we could not source verbatim from any manufacturer — here is the real data point from a flooring data sheet: “Pot life at 10 / 20 °C 90 / 45 min.” An exact doubling, published, on a product you can buy.
Run that forward. At 30 °C the workable pot life is a fraction of the temperate figure, on a material that is also generating its own heat. That is the operational reality of a Gulf installation, and it is why crew size and batch size — not product selection — decide whether the floor comes out right.
Dew point, humidity and the trap that is the wrong way round
The rule is standards-based and appears verbatim on flooring data sheets: “During application and initial curing of product, substrate temperature needs to be at least 3°C higher than dew point temperature.” The governing standard is ISO 8502-4:2017. The same margin appears in IMO's coating performance standard, which also caps relative humidity at 85%.
A conflict worth flagging rather than merging: the IMO standard caps RH at 85% for marine steel coating, while the flooring data sheet we examined permits “Ambient relative humidity: < 95 %”. Different products, different rules, different scopes. Follow the data sheet for the product actually being applied.
And here is the part that catches out Gulf installers, because it runs the opposite way to intuition. At 40 °C air with a 25 °C dew point, the margin is 15 K — condensation is not the binding constraint outdoors. The condensation risk appears inside, on an air-conditioned or chilled substrate. A sole panel held at 20 °C in a cooled interior, with 25 °C dew-point air reaching it while a hatch is open, is below dew point and wetting. The specification should state the substrate temperature to be achieved and verified, not the air temperature.
The binding constraints outdoors are the other two: the 30 °C ceiling, and the halved pot life.
Amine blush, and why it matters more here than in Europe
“The carbon dioxide and moisture in the air will react with the amines forming a wax-like film referred to as amine blush,” and “cooler temperatures and thinner films will be more likely to generate blush” — with the reassurance that it “does not affect the strength or properties of the cured epoxy.”
Two consequences for a floor build-up. First, “the secondary adhesion of epoxy can be reduced by amine blush” — so an unwashed blush between coats is an adhesion defect. Second, and more expensive: “Polyurethane final finishes can be sensitive to amine blush preventing them from drying.” A polyurethane topcoat over blushed epoxy may simply not dry, and the diagnosis usually arrives days late.
Substrate moisture: real numbers, and a standards correction
Flooring manufacturers publish substrate moisture limits, unlike most coating manufacturers, and the figures are usable:
| Requirement | Published limit |
|---|---|
| Epoxy floor systems | “The substrate should be dry up to 75% RH as per BS8204” |
| Deck coating | “Substrate should be dry to 95% RH as per BS8204” |
| Alternative scale | “Substrate relative humidity <4.5 % (Tramex scale or 75% RH BS8203)” |
| Damp-substrate route | A surface damp-proof membrane allows installation onto substrates “up to 99% Relative Humidity” |
| Substrate strength | “minimum of 25N/mm2, free from laitance, dust and other contamination” |
A correction worth making, because the wrong attribution is everywhere. ASTM F1869 — the calcium chloride test — sets no pass or fail limit; results are “directly applicable to flooring manufacturer's specifications.” So the widely quoted “3 lb per 1,000 ft² per 24 hours” figure is a flooring manufacturer's limit, not an ASTM limit. We could not source the numeric figure itself, so we are not publishing it.
The gap that matters most for yachts: every moisture limit we found is written for concrete or screed. We found no published moisture limit for plywood, GRP, aluminium or steel deck substrates — which is what a yacht actually has. That is a real omission in the published record and it should be resolved with the manufacturer's technical desk for the specific vessel, not assumed from a building specification.

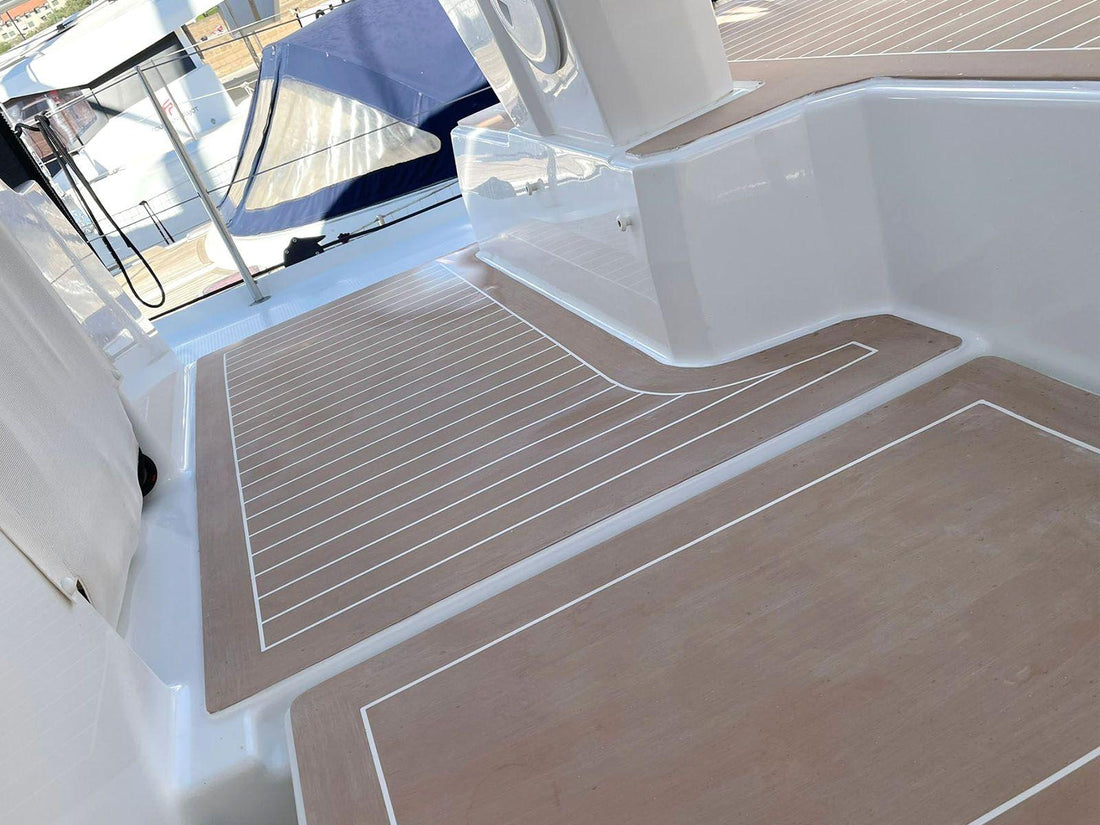

Heat underfoot: what can and cannot be claimed
The burn-threshold framework exists but does not give you a number. ISO 13732-1 provides threshold values for contact burns but explicitly “does not set surface temperature limit values.” ASTM C1055 is the more usable structure: contact-time bases of 5 seconds for industrial and 60 seconds for consumer products, with a first-degree burn as the maximum acceptable injury.
We could not obtain the numeric temperature-and-time threshold table from either standard. Both are paywalled. What the standards give us is a defensible framing: a surface guests walk on barefoot is a 60-second consumer-contact surface.
Measured surface temperatures in hot climates are published — for pavements, not decks. A 2025 burns study reports that “asphalt temperatures could climb as high as 74.4 °C (166 °F)” and that pavement burn injury risk in a desert climate begins at roughly 35 °C ambient (European Burn Journal, 2025).
Now put one of those figures next to a product limit. A polyurethane deck coating data sheet states the material “Softens over 70°C, Hardens on cooling.” The measured asphalt figure above is 74.4 °C.
The honest caveat: that 74.4 °C is asphalt in Las Vegas, not a resin deck in Dubai, and we found no measured surface temperature for a yacht deck or sole anywhere. We are not claiming the transfer. What we are saying is that the published softening threshold for at least one PU deck system sits inside the range that dark horizontal surfaces demonstrably reach in desert climates — and that a specification for an exposed Gulf deck should ask the manufacturer for the softening point in writing.
| System | Published service temperature |
|---|---|
| Epoxy coating | “Tolerant up to 60°C” |
| PU screed at 3 mm | “From -5°C to 70°C” |
| PU screed at 4 mm | “From -15°C to 90°C” |
| PU deck coating | “Softens over 70°C” |
Note that the PU screed's limit improves with thickness — 70 °C at 3 mm, 90 °C at 4 mm. Film build is a thermal specification, not just a wear specification.
The comparison: weight, heat and wear
| Resin flooring | Teak decking | Marine vinyl / LVT | Marine carpet | |
|---|---|---|---|---|
| Weight per m² | 2.0 kg/m² per mm — published. A 2–3 mm interior system is about 4–6 kg/m² — our calculation | 7.9–11.8 kg/m² of bare timber at 12–18 mm — our calculation from a published density of 655 kg/m³. Caulk, adhesive and substrate: no source found | 3.3 kg/m² at 2.0 mm — published | No source found |
| Thickness | 2–3 mm coatings, 3–9 mm screeds — published | 12–18 mm planks; end of life at 8–10 mm — supplier-published | 2.0 mm overall, 0.5 mm wear layer | No source found |
| Thermal conductivity | Epoxy 0.35 W/(m·K) — secondary | ≈0.18 W/(m·K) — our calculation | PVC 0.19 W/(m·K) — secondary | 0.04 W/(m·K) — not a marine carpet |
| Abrasion | Taber CS17 at 1 kg: 0.1 g, 0.12 g and 90 mg loss per 1000 cycles — published | Loses thickness to each sanding | 0.5 mm wear layer | No source found |
| Time to foot traffic | 12–48 h for epoxy and PU; 1 hour for MMA — published | Caulking and finishing 2–5 days | No source found | No source found |
| UV stability | “This product is not UV stable and may discolour unless otherwise stated” — published on five epoxy data sheets | No source found | No source found | No source found |
Thermal conductivity is worth a sentence, because the intuition is usually right for the wrong reason. Epoxy conducts roughly twice as well as teak or PVC. A seamless resin floor at the same surface temperature will therefore feel hotter underfoot than timber, because it draws heat out of the foot faster. That is a real comfort difference and it is not a durability question.
The DIN 51130 R-rating scale — R9 to R13 — is quoted constantly and we could not verify its title or class boundaries from any accessible source. So we are not publishing R-values. If an R-rating matters to your specification, ask for the test report, not the letter.
Fire performance — and a correction to a very common error
The IMO Fire Test Procedures Code is routinely miscited on flooring specifications. The correct scoping, from the code itself: Part 5 is “Test for surface flammability (Test for surface materials and primary deck coverings)” — the low-flame-spread test. Part 2 is the “Smoke and toxicity test”, under which primary deck coverings must meet a limit where “the Dm shall not exceed 400 in any test condition.”
So “FTP Part 2 low flame spread” is wrong — flame spread is Part 5, and Part 2 is smoke and toxicity. If a supplier's certificate cites the wrong part, that is a reason to look harder at the certificate.
What is published on flooring data sheets are the European classifications: EN 13501-1 Bfl-s1 on several systems. Those are real test results. They are not IMO results. A resin floor with an EN 13501-1 classification and no IMO FTP result is not certified for a vessel that needs one — and for a commercially operated yacht that distinction is the whole point of the certificate.
Downtime — and the phasing insight
| System | 10 °C | 20 °C | 30 °C |
|---|---|---|---|
| Epoxy coating | 48 h / 72 h / 12 d | 16 h / 48 h / 7 d | 12 h / 40 h / 6 d |
| Epoxy self-levelling, 2–3 mm | 36 h / 72 h / 12 d | 28 h / 48 h / 7 d | 24 h / 36 h / 6 d |
| Epoxy, 3–5 mm | 48 h / 72 h / 12 d | 24 h / 48 h / 7 d | 16 h / 24 h / 6 d |
| PU screed, 3–4 mm | 36 h / 72 h / 10 d | 24 h / 48 h / 7 d | 12 h / 24 h / 6 d |
| MMA | — | “Light Traffic 1h”, “Full Traffic 2 - 3h” | — |
Here is the Gulf trade-off in one table: warm ambient roughly halves the time to traffic compared with 10 °C, at the cost of halved pot life. The heat that makes a Gulf installation difficult to apply is the same heat that gets the vessel back in service faster. And MMA at one hour to foot traffic is in a different category altogether — worth knowing when downtime is the binding constraint rather than cost.
One gap: we found no published figure for time before furniture can be replaced. The nearest proxy is “Full Chemical Cure 7 d @ 20 °C”. On a refit where joinery goes back on top of a new floor, that seven-day figure is the one to build the programme around.
And the phasing insight, which comes from the teak side of the industry but transfers. A supplier's published deck refit timeline shows that of a 6-to-14-week project, the vessel is required in the yard only for templating, removal, preparation and installation — while manufacturing runs “3–8 weeks” with “the vessel free.” That structure is the difference between a floor project that costs a season and one that costs a fortnight. We found no published guidance on phasing a resin floor installation, and a seamless floor is inherently harder to phase than a panelled one.
The UV problem, and where resin is honest about itself
This is the most quotable line in the whole category, and it appears verbatim on five separate epoxy data sheets:
“This product is not UV stable and may discolour unless otherwise stated.”
In a region with roughly 2,100 kWh/m² of annual global horizontal irradiation, “depends on the UV light and heat levels present” is not a small caveat. For an interior sole away from direct sun it may not matter. For anything under a skylight, in a saloon with large glazing, or on an exposed deck, it is the specification question.
And there is a conflict to flag. One polyurethane deck coating data sheet claims the product is “100% UV light stable and does not yellow over time” — while the same data sheet carries the general disclaimer “No resin system is totally colour fast and may change colour over time.” Both sentences, one document.
So the accurate statement is not “resin yellows.” It is: unprotected epoxy is published as not UV stable; UV stability is claimed for some topcoated PU systems, and at least one of those claims is qualified by its own data sheet. Ask for the specific product's UV test data, with the standard and the hours.
Cleaning and the honest gaps
Published care instructions are consistent and undemanding: clean regularly with a rotary scrubber drier and a mildly alkaline detergent. Chemical resistance is published where relevant — one PU system offers “excellent resistance to sugars and most acids” and “Water permeability: Nil.”
Notable absence: not one data sheet we reached publishes a list of prohibited chemicals. For a material that will meet galley spills, deck cleaners, sunscreen and solvent, that is a gap worth closing with the manufacturer in writing before installation rather than after a stain.
On repairability we have nothing to publish. We found no source comparing repair of a seamless resin floor against a planked or tiled one. The mechanism is obvious enough — a seamless floor has no natural repair unit — but obvious is not sourced, and we are labelling it as reasoning.
A note on teak, since it is the alternative everyone weighs
Teak is not a CITES-listed species. The constraint is sanctions and due diligence law, not species protection, and that distinction is frequently muddled.
The sanctions position, as far as we could verify it: Myanma Timber Enterprise was designated by the US Treasury on 21 April 2021. We checked the UK Myanmar sanctions regulations and found no mention of timber or teak in the instrument itself, and we could not verify a UK or EU designation. So we are stating the US position as verified and the UK and EU positions as unverified rather than guessing.
The live regulatory story for a 2026 project is the EU Deforestation Regulation, not EUTR. Regulation (EU) 2023/1115 covers wood, repeals the EU Timber Regulation, and applies from 30 December 2026 for large and medium operators. If your supplier is still talking about EUTR, they are a regulation behind.
And on surface temperature — the comparison everyone wants — we found no measured absolute temperatures for teak against any synthetic. The only claims available are relative and from manufacturers of the alternatives. We are not going to launder marketing claims into a comparison table.
What to specify
- Where the work happens and when. The 30 °C ceiling is the binding constraint, so the answer is a conditioned shed, a shaded programme, or a winter slot. State it in the specification.
- Substrate temperature, measured and recorded — not air temperature — against both the product maximum and the dew point margin.
- The substrate moisture limit for your actual substrate. If it is plywood, GRP, aluminium or steel, no published limit exists and the technical desk has to give you one.
- Total film build with its service-temperature consequence, since 3 mm and 4 mm of the same PU screed have limits 20 K apart.
- UV data with the standard and the hours, particularly for anything under glazing or exposed.
- The fire certificate, by FTP part number — Part 5 for surface flammability, Part 2 for smoke and toxicity — and an IMO result rather than an EN classification if the vessel needs one.
- The programme, phased: templating, off-vessel manufacture where possible, and a defined time before joinery returns.
- The prohibited chemical list, in writing. Nobody publishes it.
Yacht IQ is the exclusive UAE distributor for API marine resin flooring systems, and we will provide the data sheet, the application window and the certificate with the sample rather than after the order. Interior material selection is covered further in our post on marine leather, vinyl and suede in Gulf conditions.
Contact Yacht IQ about samples and a specification review for your flooring project.
Tell us the spaces, the substrate, the exposure and when the yard slot is, and we will come back with systems that can actually be applied in those conditions. Visit our showroom or get in touch.
📍 Showroom: Dubai Maritime City, F1B W223
📧 info@theyachtsolutions.com
📱 WhatsApp: +971 54 224 1031
🌐 theyachtsolutions.com
