Bronze Marine Valves and Seacocks: Dezincification Risk in 42 psu Water
Published by Yacht IQ, Dubai Maritime City — part of the Silver Yachts group of companies.
A 25 mm seawater inlet fitting on a UK charter vessel fractured at the base of its thread. The vessel had been in service sixteen months. The material was 60/40 leaded brass. At the failure point the metal was corroding at approximately 1.275 mm per year — roughly double the maximum documented rate for the mechanism involved (MAIB report, Random Harvest).
Sixteen months. In temperate British water.
That is the case worth holding in mind when someone tells you a brass seacock is fine because it looks fine.
What dezincification actually does
Brass is copper and zinc. In seawater the zinc dissolves preferentially, leaving behind a porous copper skeleton that holds its shape and loses its strength. The MAIB investigation puts it plainly: “the zinc is leached from the metal. The copper shell which remains is porous and fragile.”
The critical part is where it happens. The MAIB found that “high stresses under the thread roots appear to be an important factor, causing corrosion rates in these regions to be double the underlying uniform rate.”
Read that again, because it is the whole reason visual inspection misleads people. The attack concentrates precisely where the fitting is threaded — inside the hull, under a hose tail, out of sight — while the visible body of the valve looks perfectly sound. A fitting can pass a glance and fail a load.
The alloys, and what to reject
| Designation | What it is | Verdict |
|---|---|---|
| CW617N / CZ122 | Ordinary leaded brass, ~40% zinc | Reject below the waterline |
| CW602N / CZ132 | DZR brass, ~35–37% Zn, arsenic-inhibited | Acceptable, with conditions |
| CC491K / C83600 | Gunmetal, leaded red brass, 85-5-5-5 | Fully resistant in seawater |
| CC480 / CuSn10 | Tin bronze, 90% Cu / 10% Sn | Fully resistant |
| C87600 | Silicon bronze (properly a low-zinc silicon brass) | Used for valve bodies and stems |
Composition data from Metelec, Brassland, the Copper Development Association and a Danish corrosion study of through-hull fittings.
On the zinc threshold: ISO 6509-1 scopes its dezincification test to alloys above 15% zinc, which functions as a de facto line. Below 15% is generally resistant; 15–30% is susceptible; above 30%, where beta phase appears, is highly susceptible. Some in the industry argue correctly-treated 35% zinc brasses have served in billions of applications without issue. Both positions are defensible, and the resolution is that phase structure and inhibitor decide it, not zinc percentage alone.
The detail that catches out most specifications
Here is the point almost every buyer misses. DZR is not just a chemistry — it is a chemistry plus a heat treatment.
Arsenic, the inhibiting element, only protects the alpha phase. Beta phase remains vulnerable regardless of alloying, so a high-temperature anneal is required to convert beta to alpha: “by converting beta phase to alpha phase, it can now be protected by the minor or major alloying additions” (Wieland Chase).
Which means an item stamped CW602N is telling you its composition, not its treatment. Brassland's own guidance is unusually blunt about this: “DZR performance depends on chemistry plus heat treatment. Specify ISO 6509-1 qualification on the drawing, not just the alloy designation.”
That single sentence is the most useful specification advice in this article. Ask for the qualification, not the designation.
A note on what we could not source: we found no citable figure for the required anneal temperature and duration, and no citable acceptance depth under EN 12164/12165. The commonly-quoted “100 µm / 200 µm” DZR criterion is widely repeated and we could not trace it to a standard. NSF/ANSI 14 does set a 200 µm maximum depth. We are not going to publish the others as fact.
What the standards require
ISO 9093:2020 — Small craft: seacocks and through-hull fittings — is the strongest citation available and supersedes the older 9093-1 and 9093-2. It requires that brass materials be “dezincification resistant (DZR) when tested in accordance with ISO 6509-1:2014 and assessed in accordance with ISO 6509-2:2017”, that below-waterline materials be corrosion-resistant, and that thread size and type be permanently marked (standard preview).
ABYC H-27 requires compliance with ANSI/UL 1121 and a 500 lb static force for 30 seconds applied to the inboard end without loss of watertightness, with compatible thread forms throughout (ProBoat). Note that H-27 does not, in the text we could verify, explicitly ban brass — that is an editorial reading, and we are flagging it as such.
The ISO test conditions themselves are worth knowing: 1% copper chloride, 75 °C, 24 hours. A hot, aggressive, chloride-rich accelerated test. Which brings us to the Gulf.
Why 42 psu at 35 °C is a harder duty — and a surprise
Southern Gulf inshore salinity averages around 41.8 psu against an open-ocean 35, and Dubai seawater reaches 32.7 °C in August.
Temperature is unambiguously bad news. Work on dezincification in potable systems found rates doubling between 20 °C and 70 °C (Virginia Tech) — a potable-water dataset rather than a seawater one, so treat the direction as sound and the magnitude as indicative.
Flow matters more than most people expect. The worst configuration is a stagnant anode with a flowing cathode, where corrosion current density at the anode rose “by over an order of magnitude” on transition to turbulent flow at the cathode. In practice: a rarely-used heads inlet teed off a live engine cooling circuit is a worse case than either on its own.
One honest correction. The dramatic white “meringue” deposits you may have read about are a potable-water phenomenon requiring pH above 8.0 and low zinc solubility. That is not what you will find on a seacock. In seawater the relevant distinction is plug-type attack under occluded conditions versus layer-type on exposed surfaces. And we found no published chloride-concentration data comparing dezincification at 35 versus 42 psu — we are arguing from mechanism, not from a curve.

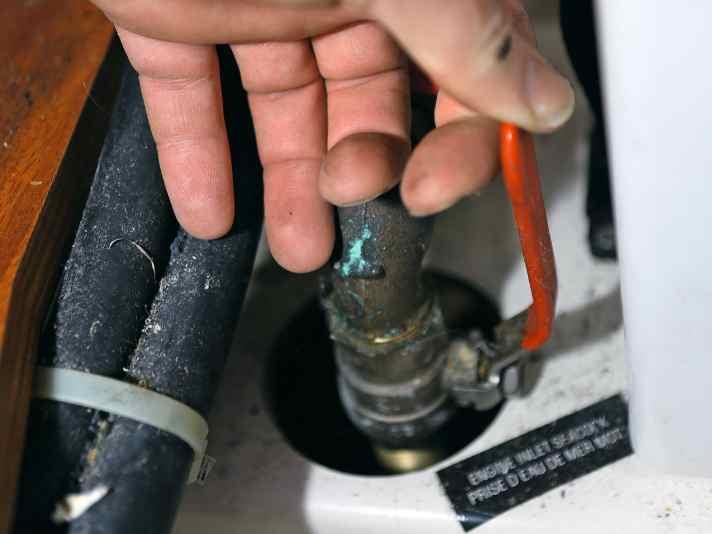

Inspecting a seacock without removing it
Six checks, in order:
- Clean the tarnish, then judge the colour. “Brass is yellow, whereas bronze and gunmetal are more copper red.”
- Look for pink spots and pitting on external flanges. Pink means selective leaching. It means replace — not monitor (Yachting Monthly).
- Scratch or grind the seawater side. Dezincified metal is “reddish and softer” than sound substrate beneath.
- Percussion test. “Lightly hit the body of the valves with a screwdriver and hammer.” A dull, dead response — rather than a ring — indicates a copper skeleton.
- Flex the hose tails. “Move the hoses back and forth to test the strength of the tails.” This is where thread-root attack shows up.
- Read the markings. CW617N reject, CW602N acceptable. Genuine DZR is natural gold, not silver-plated.
Inspect through-hull, valve, elbows and tailpipe as separate items. The engine cooling inlet is singled out in the literature as the most failure-prone position on the boat.
Is stainless acceptable below the waterline?
There is a real debate here, and the Gulf-relevant figure settles it more firmly than the general case does.
Against. 316 has “only limited corrosion resistance” in ocean seawater, with crevice corrosion initiating after three to six months in tropical waters against “a few years” in Danish waters, showing as rusty streaks along flanges. Three to six months. In water like ours. 300-series is also described elsewhere as “not ideal because of its propensity for crevice corrosion.”
For. Stainless ball valves are widely fitted and there is extensive practitioner defence of them on mechanical strength and observed service. But we should be straight about the evidential asymmetry: that case rests on forums and field experience, and we found no peer-reviewed source defending 316 below the waterline in tropical seawater.
Also acceptable per the Danish study: glass-reinforced plastics of the Marelon type, and nylon or PVC compounds only where EN/ISO 9093 certified. Plain PVC is rejected on tensile strength grounds.
How to specify a replacement
Ask for three things and you will not go wrong: the alloy designation, ISO 6509-1 qualification stated on the certificate or drawing, and ISO 9093 compliance. Then require permanent marking with the complete material specification — the corrosion literature explicitly recommends demanding manufacturer markings rather than accepting a supplier's word.
And do it as a system. Replacing a valve while leaving a sixteen-month-old brass through-hull in place solves nothing.
