Inflatable Fenders in Gulf Heat: Pressure, UV and Berthing Loads
Published by Yacht IQ, Dubai Maritime City — part of the Silver Yachts group of companies.
A fender that was correctly inflated at three in the afternoon can be a floppy bag by three in the morning. Not because it leaks. Because of physics that almost nobody accounts for when they buy fenders for a Gulf berth.
This article is not another sizing chart. Those exist, they broadly agree, and most of them stop at 18 metres anyway. This is about the three things that actually determine whether a fender survives a UAE summer and protects your paint when it matters: internal pressure across a 40-degree daily swing, the UV and heat tolerance of the skin material, and what stern-to berthing does to loading.
The pressure problem, with the arithmetic
A sealed inflatable fender is a fixed-volume gas container. Gay-Lussac's law governs it: P₁/T₁ = P₂/T₂, with pressure in absolute units and temperature in Kelvin. Two mistakes make this invisible to most people — using gauge pressure instead of absolute, and using Celsius instead of Kelvin. Both hide the size of the effect.
Absolute pressure = gauge + 14.696 psi. Temperature in Kelvin = °C + 273.15. Run the numbers for a Gulf day:
| Set at 30 °C | Skin reaches | Result (gauge) |
|---|---|---|
| 1.0 psi | 60 °C | 2.57 psi — a 153% rise |
| 1.0 psi | 70 °C | 3.09 psi — a 204% rise |
| 5.1 psi | 70 °C | 7.71 psi — a 51% rise |
And the reverse case, which is the one that catches crew out. A fender inflated to 1.0 psi while its skin sits at 45 °C in afternoon sun falls to roughly 0.03 psi at 25 °C overnight — effectively flat, at exactly the hour nobody is on deck watching.
The structural insight is this: the lower the working pressure, the more violent the proportional swing. A high-pressure pneumatic fender at 80 kPa moves perhaps 30% across the same temperature range. A soft yacht fender at 1 psi doubles or triples. And soft is precisely what the manufacturers recommend — AERÉ states that “most AERÉ Inflatable Fenders only require inflation to 1–2 psi as you want the fenders 'dentable' to perform at their best” (AERÉ).
So the low-pressure yacht fender is the worst case for thermal swing, by design.
What to do about it. Set pressure in the morning, in shade, at the coolest skin temperature of the day — not at 1500 with the fenders on the hot side of the hull. Check again after the first hot afternoon. Accept that a fender which feels slightly soft at dawn is correct, and one that feels perfect at dawn will be over-pressured by mid-afternoon. On a long stay alongside, check weekly rather than assuming a set-and-forget pressure holds.
Burst is rarely the failure mode — AERÉ notes its fenders are “pressure tested to over 45 psi”. The real damage is cumulative seam and fabric fatigue from cycling, and the under-inflation half of the cycle, where a soft fender rolls out from between hull and quay and lets the two meet.
Skin materials, and the number that matters most
Four material families are in use. The comparison below is drawn from vendor data, which is the only data that exists — flagged as such.
| Hypalon / CSM | Aliphatic TPU | HD PVC | Coated textile | |
|---|---|---|---|---|
| Stated UV life | 15–20 yr | ~15 yr | 10 yr | not published |
| Temperature range | −40 to +150 °C | −50 to +70 °C | 0 to +50 °C usable | claimed −85 to +122 °C |
| Relative fabric cost | 1.0× | ~0.8× | ~0.4× | — |
| Repair | specialist, 48 h cure | hot-air patch | fastest, field-repairable | manufacturer |
Source for the first three columns: Mercer Yachting.
The single most useful figure in this table is HD PVC's usable ceiling of +50 °C. A dark fender skin in direct Gulf sun in August sits above that. Not near it — above it. And the consequences are documented: PVC in sustained heat “goes hard, crisp, faded, and mechanically weak”, and glued PVC seams can “soften and creep in very hot service”, whereas Hypalon adhesive “does not reactivate in heat, so seams hold” (Superyacht Tenders).
That is why PVC fenders in this region fail at the seams and go chalky in two or three seasons while the same product lasts a decade in northern Europe. It is not a quality problem. It is a specification problem.
Coated textile fenders — a knitted polyester outer over a polyurethane bladder — sit differently. The published claims are a 95% weight reduction against PVC, deflation and stowage to 5–10% of inflated volume, and compression resistance up to 20,000 kg on the largest model, with machine washing permitted at no more than 40 °C (PYI). Yacht IQ supplies Fendertex textile fenders, and our colleagues at Maison Azure have written on how textile fenders changed superyacht docking practice.
Where we have to be honest. The claimed 122 °C operating figure for textile and the 50 °C usable ceiling for HD PVC are not measured on the same basis and are not directly comparable. Textile manufacturers publish no UV exposure hours or degradation timeline. There is no independent, standardised, side-by-side accelerated-weathering dataset for yacht fender skins. We looked. Anyone who tells you their fender outlasts another by a specific factor in Gulf sun is not citing a test, because no such test has been published.
Sizing: what the guides say, and where they stop
The formulaic rules are consistent. Jimmy Green Marine gives “1 inch fender diameter or 2 inch round fender diameter for every 4 or 5 feet of yacht length overall”, with quantity at “1 fender per 10 feet of Low Waterline Length” and a minimum of three (Jimmy Green). Boat Fenders Direct adds the freeboard rule that actually matters: fenders should cover at least two-thirds of the hull height above the waterline, and advises “always go up a size” (Boat Fenders Direct).
Two limitations worth knowing. First, the independent tables stop at around 18 m; above that you are reading vendor charts, and those overlap awkwardly — one superyacht range lists both its 24-inch and 32-inch fenders for the same 100–200 ft band. Second, and more fundamental: the only rigorous berthing-energy framework in existence, PIANC WG211, “explicitly applies to seagoing vessels” and contains no guidance on yacht berthing at all (PIANC WG211, 2024).
So everything below commercial shipping runs on rules of thumb. What the physics does tell you unambiguously is that berthing energy scales linearly with displacement and with the square of approach velocity. A heavy displacement hull coming in slightly fast is a very different load case from a light one, and no length-based chart captures that.
Stern-to berthing changes the shape you need

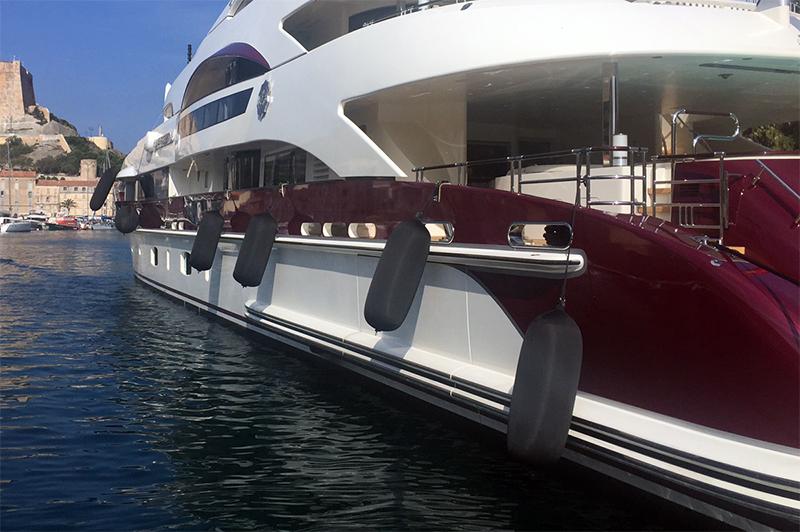

Almost every fender guide assumes alongside berthing: a lengthwise row of fenders concentrated near maximum beam, with the vessel free to translate against the quay. Mediterranean mooring — the norm at Dubai Harbour and Dubai Marina — is a different load case.
Three things change. Contact concentrates at the quarters and the transom corners rather than parallel along the beam, which means a cylindrical fender hung vertically at the quarter is presenting the wrong geometry to an angled, point-loaded contact; spherical fenders and dedicated quarter fenders tolerate that angle far better. Second, contact is intermittent and shock-loaded as the vessel surges against the lazy line or anchor, which favours a firmer, higher-energy fender over a soft one. Third, your neighbours are two or three metres away on both sides, so a fender that rolls out of position is a two-boat event.
There is no published quantified comparison of stern-to versus alongside loads for yachts. The mechanism is clear; the numbers do not exist.
Covers: worth having, for a reason nobody has measured
Fender covers are sold on scuff protection — loop-knit acrylic or marine polyester to “reduce rubbing, scuffing, and black marks” and prevent gelcoat streaking (Boat Fenders Direct). That benefit is real and well established.
The heat argument is physically sound but unmeasured: a light-coloured woven cover raises surface albedo and adds a stagnant air layer, which should lower skin temperature and therefore reduce the pressure excursion, while shading the skin from direct UV. No manufacturer publishes a measured temperature difference. We would like to see someone actually measure it. Until then, treat the thermal benefit as a reasonable expectation rather than a specification.
The short version
Specify skin material for your climate, not your budget — the PVC ceiling of 50 °C is the line that matters. Set pressure cold, in the morning, and check it weekly alongside. Size on freeboard and displacement, not length alone. And if you berth stern-to, buy for the quarters, not for the beam.
