Shamal Dust and Your Yacht: What It Damages and What It Only Makes Ugly
Published by Yacht IQ, Dubai Maritime City — part of the Silver Yachts group of companies.

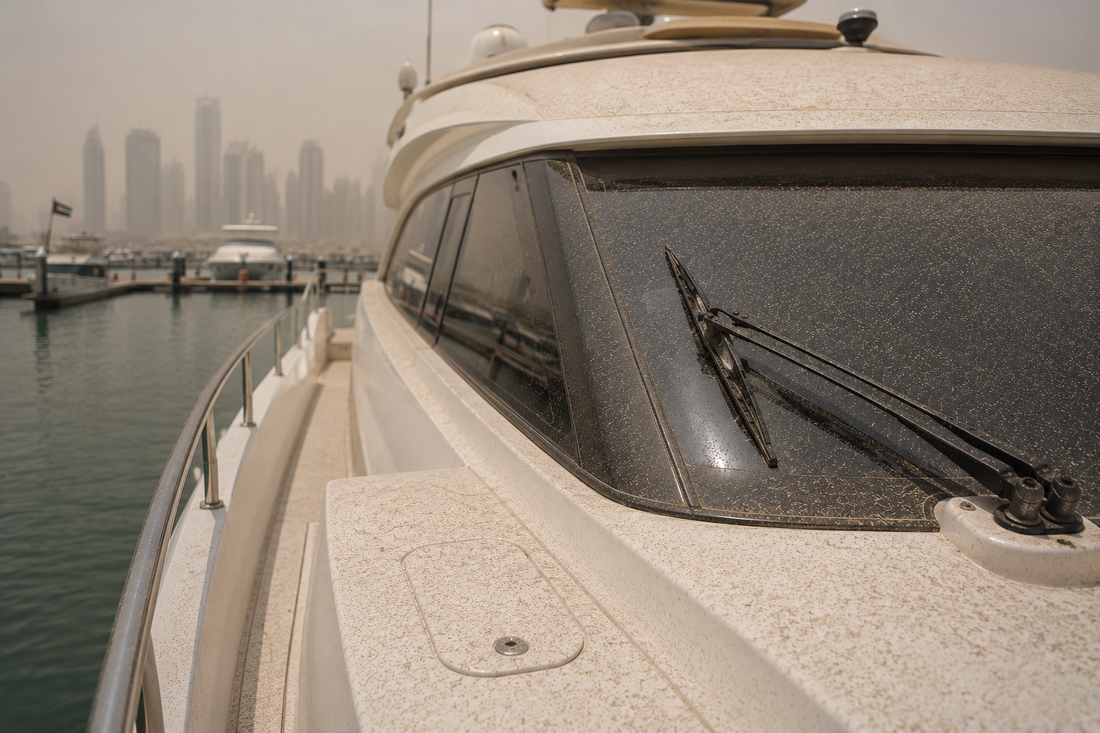

There is a specific piece of advice worth giving every new crew member in this region, and it is counter-intuitive: do not wipe the dust off.
Not with a dry cloth, not with a chamois, not with the corner of a towel because it is only a light film and the owner is arriving in twenty minutes. The reason is mineralogical, and once you know it you will never dry-wipe a Gulf yacht again.
What the shamal actually is
Two distinct wind events share the name. The summer shamal — the barih, or forty-days' shamal — is “almost incessant during June and part of July”, generally not exceeding moderate gale force. The winter shamal is shorter and stronger, typically lasting three days but occasionally seven, reaching “fresh gales or at times hard gales.” In the northern Gulf, shamals blow “about nine months in the year” (GlobalSecurity).
For the UAE specifically, the most useful number: sand and dust storms affect roughly 3.9% of the year in Abu Dhabi — about fourteen days — against 7.1% in Qatar and 5.6% in Bahrain (Middle East Institute).
Fourteen days sounds manageable. The deposition figures are what change the picture.
The number that should worry you
Dust fallout measured in Kuwait City averaged 0.59 kg/m² per year, ranking first among fifty-seven measured global locations, with monthly rates reaching 0.32 kg/m² in the worst months (Al-Dousari et al.).
Put that on a yacht. A 30 m vessel with something like 250 m² of exposed horizontal surface — decks, coachroof, biminis, tender tops — is receiving on the order of 80 kg of mineral dust across a bad month. Not evenly, and not all of it staying put. But that is the mass being deposited, blown around, and wiped off by hand.
The mineralogy, which is the whole point
Here is what that dust is made of. The same Kuwait study gives the composition by X-ray diffraction:
| Mineral | Share | Mohs hardness |
|---|---|---|
| Calcite | 37.8% | 3 |
| Quartz | 31.2% | 7 |
| Feldspars | 18.2% | 6–6.5 |
| Illite | 11.6% | 1–2 |
| Dolomite | 5.9% | 3.5–4 |
Work in Doha and the UAE confirms the same picture — calcium carbonate and silicon oxide predominant, with dolomite and gypsum as minor components (Doha PV study; UAE study).
Now the size distribution. In Doha, “typically, 95% (by volume) of accumulated dust particles lie in the 1–50 µm diameter range”, with median diameters between 9 and 17 µm depending on exposure period.
So: roughly a third of Gulf dust by mass is quartz, at Mohs 7, in particles of 1 to 50 microns.
For comparison, window glass sits around Mohs 5.5. Quartz is harder than glass. It is very much harder than polyester gelcoat or a two-pack topcoat.
The inference — and it is an inference, stated as one. We found no published measurement of gelcoat scratch hardness, and no study of Gulf dust abrading marine coatings. What the sourced facts establish is that dry-wiping drags a Mohs-7 mineral across a soft coating under fingertip pressure, at exactly the particle size that produces fine directional micro-marring rather than one visible scratch. That is the mechanism behind the dull, swirled, slightly hazy finish that appears on Gulf-based yachts after two or three seasons and that nobody can point to a single incident for.
It is not one bad wipe. It is four hundred careful ones.
What to do instead
Flood before you touch. Copious fresh water first, low pressure, top down, and let it carry the particles off rather than pushing them across the surface. Do not start with a cloth on a dry surface, ever.
Wash media matters more than soap. A clean lambswool mitt or soft-bristle brush that releases grit, rinsed frequently in a separate bucket. Grit trapped in a pad turns the pad into sandpaper. Two buckets — one wash, one rinse — is the single cheapest improvement available.
Dry with the wind, not against the clock. In this climate water evaporates before you reach it, leaving mineral spotting — and the calcite fraction means those spots are carbonate scale, not just salt. Work in shade, in smaller sections, and dry with clean microfibre or a silicone blade rather than chasing the whole deck.
Cover what you can. Covers cost less than a respray. That is the whole argument.
The filters nobody thinks about until they fail
Dust does not only sit on surfaces. It loads every air filter on the vessel.
The industry has quietly given up on interval-based guidance for dusty environments, and that itself is the finding. Caterpillar's own instruction is condition-based: an air filter “should be checked every 250 hours in normal conditions or daily if dust is severe”, and a service indicator “can often save eight filter changes when in a cleaner environment for 6,000 operating hours” (Caterpillar).
We looked for a numeric restriction limit or a published interval-reduction factor for dusty operation from the major engine and generator manufacturers. There is none. OEMs deliberately replace the hours-based interval with a restriction indicator, because dust loading is unpredictable.
The practical translation for a Gulf-based yacht is straightforward: fit and actually read a restriction indicator on main engine and generator intakes, rather than trusting the hours in the service schedule. And inspect daily during a shamal, per Caterpillar's own wording.
On HVAC filters we found no published marine guidance for high-dust environments at all — a genuine gap. What is not in doubt is that a loaded return-air filter reduces airflow across the evaporator, which in Gulf conditions pushes an already marginal system closer to its limits. Our piece on why marine air conditioning is often undersized here covers why the margin is so thin; a blocked filter turns it into a shutdown.
Material by material
Gelcoat and topcoat — the primary abrasion risk, per the mechanism above. Flood, never dry-wipe.
Glass and acrylic — acrylic windows and screens are softer than glass and mark more readily. Same rule, more care.
Stainless — dust holds moisture against the surface and creates the conditions for tea-staining. Rinse rails and fittings even when the deck looks clean.
Teak — dust works into the grain and into caulk seams. Over-scrubbing to remove it does more damage than the dust; flood and use a soft brush across the grain, not along it.
Canvas, biminis and covers — shake and rinse rather than brush; grinding quartz into a coated fabric abrades the coating.
Moving parts — tracks, rollers, hatch runners, windlass. Grit plus salt plus load is how these seize. Rinse and re-lubricate after a significant dust event rather than at the scheduled interval.
A shamal protocol worth writing into the vessel's routine
Before, if there is warning: close hatches and vents, fit covers, stow loose canvas, and note the time so filters can be checked against the event afterwards.
During: do not clean. Anything you do with a cloth while dust is still falling causes damage without achieving anything.
After: flood-rinse fresh water top down before any contact. Check engine, generator and HVAC filter restriction. Rinse stainless and moving parts specifically. Then, and only then, wash properly.
The cost of getting this wrong is not a dirty boat. It is a hull that needs polishing a year earlier than it should, and a topcoat that has lost measurable film thickness to unnecessary compounding. In a climate where a full respray runs to several hundred euros a square metre, the arithmetic on a set of covers and a second bucket is not close.
Contact Yacht IQ about protective covers, filters and cleaning products for Gulf conditions.
We hold products specified for this climate rather than temperate ones. Visit our showroom or get in touch.
📍 Showroom: Dubai Maritime City, F1B W223
📧 info@theyachtsolutions.com
📱 WhatsApp: +971 54 224 1031
🌐 theyachtsolutions.com
