Sacrificial Anodes in the Gulf: Why Replacement Intervals Are Different Here
Published by Yacht IQ, Dubai Maritime City — part of the Silver Yachts group of companies.
Every anode guide ever written divides the world into two categories: fresh water and salt water. Pick your metal from the two-column table and replace it once a year.
The Arabian Gulf is neither column. Open Gulf salinity runs 38 to 45 psu against an open-ocean 35, the southern embayments reach 52 to 59 psu, and summer surface temperature has been measured at 35.5 °C (IFREMER, western Arabian Gulf seasonal survey). The reference practice most cathodic protection design is built on states plainly that its numbers apply “up to 30 °C as a yearly mean value” (DNV-RP-B401).
Read that sentence again. The design envelope of the governing recommended practice stops at or below Gulf summer surface temperature. That is the honest starting point for this article, and it is why a calendar interval imported from a European yard is the wrong tool here.
How a sacrificial anode actually works
Two dissimilar metals in an electrolyte form a cell. The less noble one corrodes preferentially and protects the other. An anode is a deliberately-installed sacrifice: a block of metal chosen to be more electrochemically active than your shafts, propellers, rudder stocks, trim tabs and hull, wired so that it dissolves instead of them.
The engineering question is not whether it works. It is how much current the system demands, how much charge the anode can deliver per kilogram, and therefore how long the block lasts. All three numbers are published, and the first is the one most owners never see.
Current demand for bare steel (ABS, Guidance Notes on Cathodic Protection of Ships, Dec 2017):
| Condition | Design current density |
|---|---|
| Water velocity 1 m/s or less | 100–200 mA/m² |
| Water velocity 1–10 m/s | 220–350 mA/m² |
| Water velocity 10 m/s or more | 350–500 mA/m² |
| Propellers | 500 mA/m² or more |
ABS is explicit that velocity is the dominant variable in demand, with requirements “as high as 30 times that for still water.” That has a counter-intuitive implication for a berthed superyacht: a vessel sitting still in a Dubai marina has low current demand from flow — but as we will see, it has other problems that a moving vessel does not.
The protection window is narrow at both ends. ABS: “The accepted criterion for protection of carbon steels or low-alloy steels in aerated seawater is a protection potential of –0.80 V or more negative measured with respect to Ag/AgCl/seawater reference electrode,” with −0.90 V for anaerobic conditions and −1.10 V as the negative limit, beyond which hydrogen embrittlement of mild steel becomes the risk.
For yachts specifically, ABYC E-2 gives the working windows: steel hulls −850 to −1100 mV, aluminium hulls −950 to −1100 mV against Ag/AgCl. And it warns in both directions — “a reference potential reading in excess of -1100 mV indicates excessive cathodic protection,” and on aluminium, “aluminum is an amphoteric metal, with a negative potential of over 1200 mV” producing “harmful overprotection such as alkali corrosion.”
More anodes is not more protection. On an aluminium hull, more anodes can be the damage.
Zinc, aluminium and magnesium
This is where the published numbers settle an argument that is still being had on every dock in the region. ABS, same document:
| Alloy | Closed-circuit potential (Ag/AgCl) | Practical current capacity | Consumption rate |
|---|---|---|---|
| Zinc (Z1) | −1.03 V | 780 A·h/kg | 11.2 kg per A·year |
| Aluminium (A1) | −1.09 V | 2,500 A·h/kg | 3.5 kg per A·year |
| Magnesium (M1) | −1.50 V | 1,200 A·h/kg | 7.3 kg per A·year |
Aluminium carries 3.2 times the charge per kilogram of zinc and is consumed at 3.2 times lower mass per amp-year, at a slightly more negative driving potential. A zinc set replaced annually is being outperformed, on design figures, by an aluminium set of the same mass by a factor of three.
One honest conflict to flag, because you will meet it. The marine trade indexes aluminium at 130–150 against zinc at 100 — a 1.3 to 1.5× advantage, not 3.2× (Performance Metals). Both figures are defensible because they are measuring different things: ABS publishes design electrochemical capacity, the trade reports observed service life on real installations, where anode geometry, passivation and mounting all take their cut. Expect real-world gains toward the lower figure and specify on the conservative end.
Magnesium is fresh water only. ABYC lists zinc and aluminium as suitable for salt, brackish and fresh water, and magnesium for fresh water alone — its potential of −1.50 V will overprotect and consume itself uselessly in seawater. If magnesium anodes are on a vessel berthed in the Gulf, someone has fitted the wrong part.
Why aluminium wins on mixed itineraries. Zinc has a specific failure mode in low-conductivity water: “zinc anodes can become inactive after only a few months due to the build up of an insulating film of zinc hydroxide. Aluminum anodes will remain active.” For a yacht that moves between seawater and brackish or fresh berths, aluminium is the only metal that does not need to be reconsidered at each stop — hence the trade position that “the only anode type that is recommended for all water types is aluminum.”
Why the Gulf consumes anodes faster — and why it is not the salinity
Here is the most useful finding in this article, and it contradicts what almost everyone in the region assumes.
A controlled 28-day study on carbon steel across salinity 33.18 to 61.0 ppt, pH 7 to 8.5 and temperature 25 to 35 °C produced two results that pull in opposite directions (Chohan et al., 2024, Scientific Reports 14:16543):
Temperature dominates. Corrosion rate rose 0.322 → 0.468 → 0.614 mm/yr at 25, 30 and 35 °C. In the authors' words: “Elevating the temperature from 25 to 30 °C resulted in a substantial 68.81% increase in the external corrosion rate. Furthermore, raising the temperature from 30 to 35 °C led to a remarkable 76.13% rise in the corrosion rate.” Their conclusion is unambiguous — “seawater temperature is the most prominent parameter.”
Higher salinity reduced the corrosion rate. 0.322 → 0.273 → 0.224 mm/yr at 33.18, 47.09 and 61.0 ppt: “when the salinity goes from 33.18 to 47.09 ppt, the rate of external corrosion goes down by about 14.66%,” and at 61.0 ppt, “the rate of corrosion goes down by about 28%.” The mechanism is consistent and well understood — oxygen solubility falls as salinity rises, and it is dissolved oxygen that drives the cathodic reaction on steel.
(Lower pH is also worse: pH 8.50 to 7.75 raises the rate 24.19%, and to pH 7, 42.54%.)
So the Gulf's headline characteristic — extreme salinity — is not what is eating the anodes. The heat is. At 35 °C the measured steel corrosion rate is roughly 1.9 times the 25 °C rate.
Salinity's real contribution is different and it works on the other side of the circuit: higher salinity means higher electrolyte conductivity, which lowers circuit resistance and raises the current a given anode delivers. So the anode works harder — and is consumed faster — in more conductive water, while the steel it is protecting is, on its own account, corroding more slowly. Two mechanisms, opposite directions.
We are not going to pretend the net effect is resolved. No published study measures anode consumption on yacht hulls in Arabian Gulf conditions. What can be stated defensibly: current demand rises with temperature, anode output rises with conductivity, and the design guidance everyone is using was validated in water no warmer than 30 °C annual mean. All three point the same way for interval planning.
Bonding, stray current and marina shore power
Galvanic corrosion is slow. Stray current corrosion is not, and it is the failure that actually surprises people. The distinction, from Steve D'Antonio in Professional BoatBuilder: galvanic corrosion proceeds “at a stately pace,” but stray current corrosion “often moves with startling rapidity, potentially destroying a propeller, shaft, or sterndrive in a matter of days.”
Days. Anodes sized for a year will not save a propeller from a wiring fault.
Three things to get right:
The dissimilarity threshold. “The practical definition of dissimilar in this context is any two metals whose resting voltage differ by more than 200 mV in the galvanic series.” A useful number to carry, because it makes “dissimilar metals” a measurement rather than an opinion.
Bonding continuity. ABYC E-2 §2.5.6 requires that all metals receiving cathodic protection “shall have a maximum resistance of one ohm to the cathodic bonding system anode.” For a rotating shaft that is only achievable with a proper silver slip-ring brush assembly — not a wiping strap, not a spring finger that has been in the bilge for three seasons. E-2 §2.8.1.5 additionally requires hull anodes to “prevent electrical leakage from anode electrical connections to internal metallic parts” in order to “minimize stray current corrosion.” A shaft measuring more than one ohm to the bonding system is unprotected regardless of how much zinc is bolted to the hull.
Shore power isolation. In a busy marina your vessel is electrically connected to every other vessel on the pontoon through the AC safety ground. A galvanic isolator blocks “up to 1.4V (above the typical galvanic corrosion voltage threshold) of DC voltage on the AC shore-power safety grounding wire, while still allowing AC fault current to flow freely.” An isolation transformer goes further, “isolating all direct shore-power connections to the vessel, including the AC safety ground... thereby blocking any level of inter-vessel interaction.” The relevant standard is ABYC A-28, Galvanic Isolators.
If a vessel is losing anodes far faster than its neighbours on the same pontoon, the cause is more likely to be on this list than in the water chemistry.

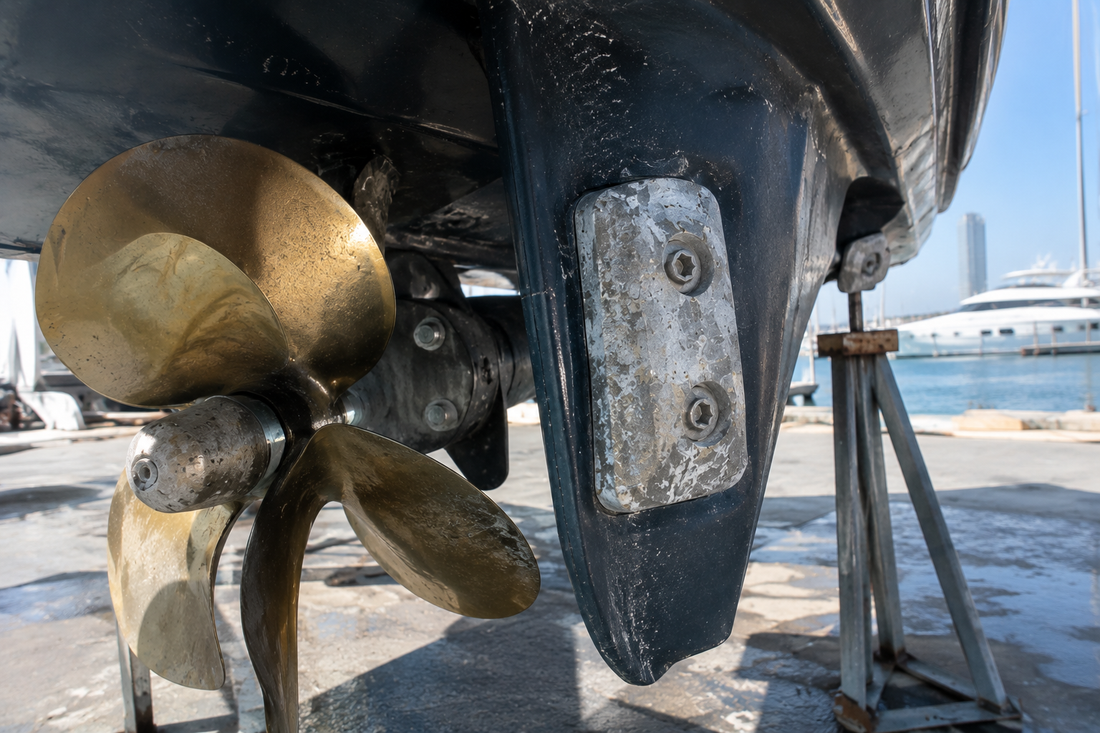

Inspection: the 50 percent rule
The single most quotable operating rule comes from ABS §2/8.2: “Anode replacement is needed when consumed about 50% or more.” Design utilisation factors run 0.7 to 0.95 of anode mass. For impressed-current systems, no component replacement is required “except for reference electrodes, which last 10 years.”
On interval, the standards default to a calendar and the trade agrees: ABYC E-2 §2.7.1 requires continuous current output “for at least the period between inspections,” with inspections “generally annually”; the trade position is to replace “when they have corroded to half their original size” or “at least, on an annual basis.”
That default is a temperate-water default. Which brings us to the thing this article can actually give you.
A Gulf inspection schedule — and what it is based on
Read this carefully: no Gulf-specific anode sizing or interval guidance exists in any published standard. The table below is Yacht IQ's engineering inference from two sourced datasets — the ABS capacity and current-density figures, and the Chohan temperature dependence — applied to measured Gulf conditions. It is a starting schedule to be corrected by measurement, not a specification. Anyone who offers you a Gulf interval table without that caveat has made it up.
| Operating pattern | Potential check | Physical anode inspection | Rationale |
|---|---|---|---|
| Berthed year-round, Gulf marina | Every 3 months, mid-season check mandatory | Every 6 months | Low flow but sustained high temperature and high conductivity. Summer months do the damage; an April check tells you nothing about September. |
| Berthed with shore power, marina with heavy traffic | Every 3 months, plus after any electrical work | Every 6 months | Stray current risk is the governing factor, not consumption. Verify isolator or transformer function at the same time. |
| Active use, regional cruising | Every 6 months | Annually, at haul-out | Higher flow raises demand, but movement and cooler offshore water moderate the thermal load. |
| Summer lay-up (June to September) | Before and after the lay-up | At the end of the lay-up | Peak water temperature coincides with zero flow and, often, zero supervision. |
| Aluminium hull, any pattern | Every 3 months without exception | Every 6 months | Overprotection above −1100 mV is itself a damage mechanism. The window is narrower than for steel and must be verified, not assumed. |
How to do the potential check. A silver/silver-chloride half-cell and a high-impedance voltmeter, read against the ABYC windows: −850 to −1100 mV for steel, −950 to −1100 mV for aluminium. Zinc's own natural potential in seawater is approximately −1050 mV, which is a useful sanity reference. Take readings at more than one point — bow, midships, stern, and adjacent to the propeller — because a single reading hides an unbonded item.
This is a fifteen-minute measurement that replaces a guess. In water outside the design envelope of the governing recommended practice, measuring beats scheduling every time.
One further caveat on secondary figures. Widely-circulated engineering summaries give temperate initial current densities of 150–180 mA/m² and lower tropical figures of 90–130 mA/m², and put aluminium-zinc-indium at 2,400–2,600 A·h/kg against zinc at 750–780. Those are consistent with ABS, but they are secondary sources — we could not extract the corresponding tables from DNV-RP-B401 itself, and we recommend verifying against a licensed copy before using any of them in a sizing calculation.
What to specify
Four things, and none of them is a brand:
- Metal, matched to the itinerary. Aluminium for anything that leaves seawater or sits in a low-flow berth. Never magnesium in the Gulf.
- Mass, sized from measured current demand — not copied from the previous owner's invoice.
- Bonding continuity to one ohm, verified with a meter, including a proper shaft brush.
- Shore-power isolation, appropriate to the marina, with the isolator or transformer function actually tested.
Get those four right and the anodes become a consumable on a schedule. Get any of them wrong and no amount of anode mass will help.
Haul-out, diver inspection and shaft work sit with the yard rather than with us; our group company Silver Yachts covers repair and refit for vessels in the region. The related question of which alloys belong below the waterline in the first place is covered in our article on bronze valves and seacocks in Gulf salinity.
Contact Yacht IQ about anode kits and inspection scheduling.
Send us hull material, shaft and propeller details and your berthing pattern, and we will specify a set with sizing rationale rather than a part number copied from the last invoice. Visit our showroom or get in touch.
📍 Showroom: Dubai Maritime City, F1B W223
📧 info@theyachtsolutions.com
📱 WhatsApp: +971 54 224 1031
🌐 theyachtsolutions.com
